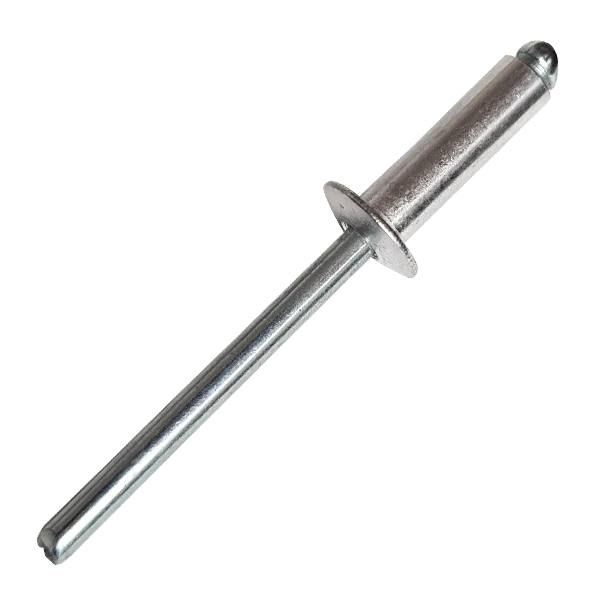

3 x 8mm Dome Head Pop Rivet (Blind Rivet) Aluminium - Steel, Grip Range: 3.5 - 5.5mm

Blind pop rivet

3 x 8mm blind pop rivet with a grip range of 3.5 - 5.5mm. Designed to join material together where there is no access to the back of the material.

Known as dome head rivets or blind rivets and manufactured with a zinc plated steel mandrel and aluminium body.

Often used when maximum clamp-up and hole fill is required and manufactured with 2 core pieces, which include a rivet body and a mandrel.

The mandrel is pulled into the rivet gun which pulls the pop rivet body to compress it against the blind side of the material.

A simple, effective threadless fastener that ensures a secure hold and once done the mandrel then snaps off to leave a clean permanent finish.

Used across many industries by DIY enthusiasts and professionals alike this dome pop rivet is part of a growing range available at Fusion Fixings with competitive prices.

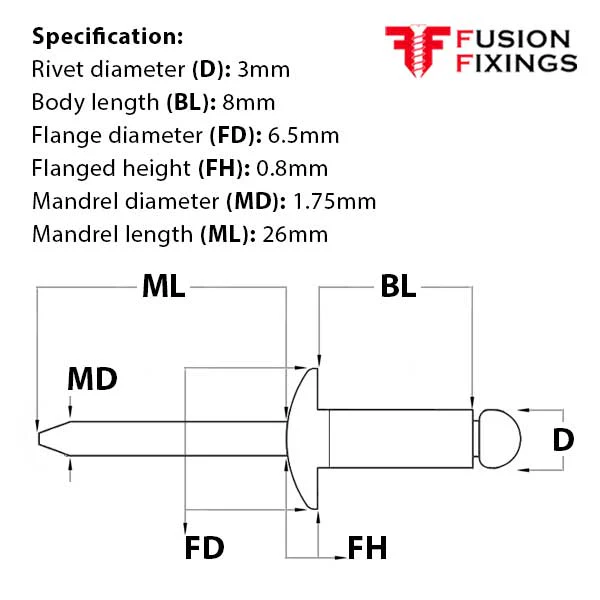

3mm pop rivet specification:

• Rivet diameter (D): 3mm
• Body length (BL): 8mm
• Head type: Dome
• Body material: Aluminium
• Flange diameter (FD): 6.5mm
• Flange height (FH): 0.8mm
• Mandrel diameter (MD): 1.75mm
• Mandrel length (ML): 26mm
• Mandrel material: Steel
• Hole size: 3.1mm
• Grip range: 3.5mm - 5.5mm
• Sheer strength: 620
• Tensile strength: 810

Part of a growing range of Aluminium pop rivets available at Fusion Fixings at competitive prices.
