3.9mm (No.7) x 9.5mm, Pan Head Self Drilling Screw (TEK), BZP, DIN 7504 N H

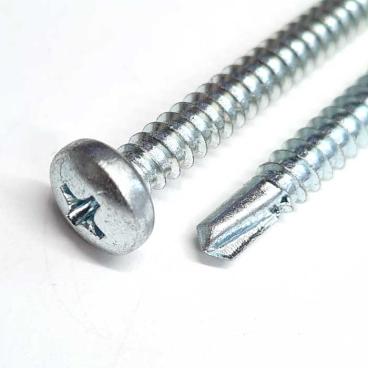

Pan head self drilling screw, 9.5mm

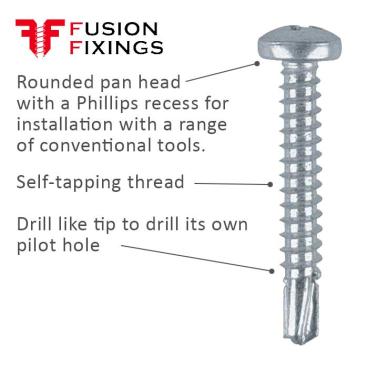

Eliminate the need for a pilot hole with this 9.5mm pan head self-drilling screw. The drill like tip eliminates the need for a pilot hole and includes a self-tapping thread for a strong hold.

Known as TEK screws they are manufactured with a Phillips pan head for installation with a range of standard tools, which sees them widely used.

Manufactured from steel with a bright zinc plating (BZP) for a medium level of corrosion and conforms to DIN 7504 N H standards.

A great combination that makes for a versatile screw when ease of installation, speed, and reliability are needed.

45mm self-drilling screw specification

• Thread Diameter (TD): 3.9mm
• Length (L): 9.5mm
• Head Width (H): 7.5mm x Head Height (HH): 2.8mm
• Drive Type (DT): Phillips
• Material: Steel
• Finish: Bright zinc plated (BZP)
• Conforms: DIN 7504 N H

Part of a growing range of pan head self-drilling screws with a Phillips recess head held in stock with various lengths available.

Note - Drill point wander is a possibility with the self-drilling screws, but this can be eliminated by using a very quick centre punch indent.
