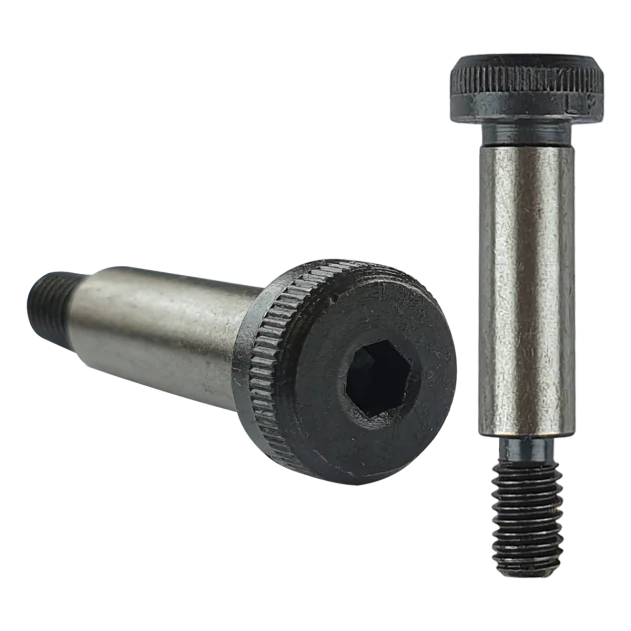

3/8” UNC (1/2”) x 3”, Socket Shoulder Screw, Self-Colour, Grade 12.9, ANSI B18.3

3/8” Socket Shoulder Machine Screw

High-strength shouldered screw ideal for heavy duty applications, with a hex socket allowing fastening with an Allen key / hex drive which sees them widely used.

An engineering screw manufactured from self-colour, grade 12.9 high tensile steel. Also known as a shoulder bolt and consisting of a socket cap head, an enlarged unthreaded shoulder section, and a threaded lower section.

A machine screw with a shoulder section allowing it to function as a dowel, pivot, or axle. This allows movement to occur around it, making it a versatile screw.

 Shoulder Screw Specification:

• Shoulder Length (SL): 3”
• Shoulder Diameter (SD): 1/2”
• Thread Length (TL): 0.625”
• Thread Diameter (TD): 3/8”
• Thread Pitch: 16
• Head Width (H): Max 0.750” - Min 0.729”
• Head Height (HH): Max 0.312” - Min 0.302”
• Drive Type (DT): Socket 1/4” (0.250")
• Material: Self-Colour, Grade 12.9 steel
• Conformity: ANSI B18.3

These shouldered engineering screws are used across many sectors and part of an extensive range of socket shoulder screws available in stock at Fusion Fixings, all with bulk purchase discounts.
