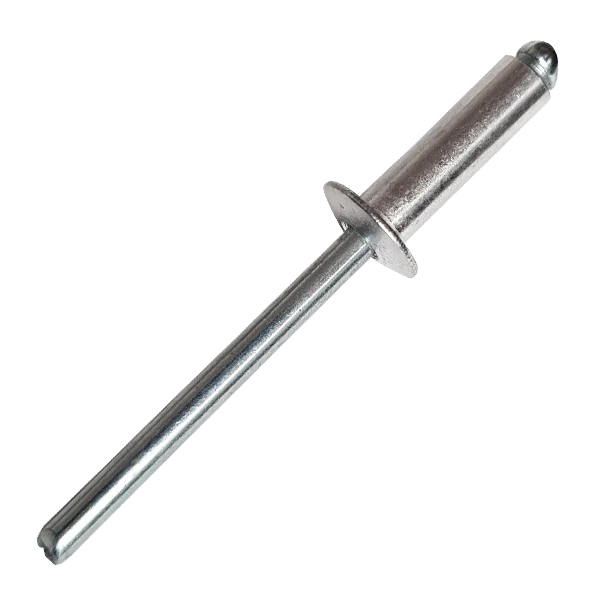

3.2 x 18mm Dome Head Pop Rivet (Blind Rivet) Aluminium - Steel, Grip Range: 12.5 - 14.5mm

3.2mm pop rivet

Pop rivet with a dome head and a grip range of 12.5 - 14.5mm. Designed to join material together where there is no access to the back of the material.

Known as blind rivets or dome head rivets and manufactured with a zinc plated steel mandrel and aluminium body.

Often used when maximum clamp-up and hole fill is required and manufactured with 2 core pieces, which includes a rivet body and a mandrel.

The mandrel is pulled into the rivet gun which pulls the pop rivet body to compress it against the blind side of the material.

A simple, effective threadless fastener that ensures a secure hold and once done the mandrel then snaps off to leave a clean permanent finish.

Used across many industries by DIY enthusiasts and professionals alike this dome pop rivet is part of a growing range of blind rivets available at Fusion Fixings at competitive prices.

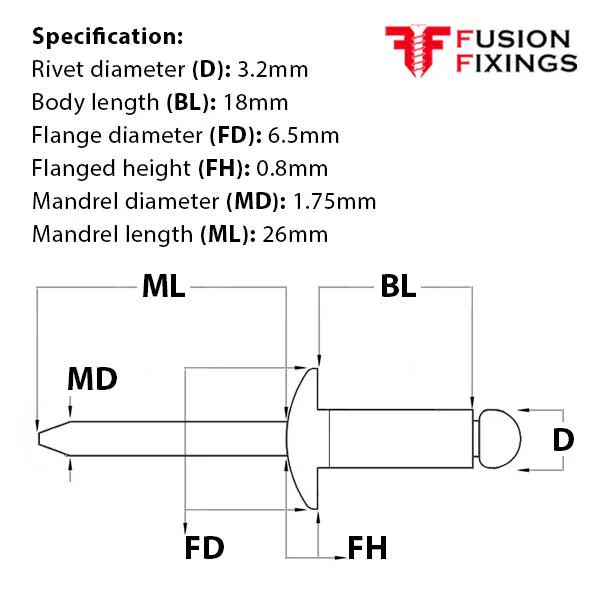

3.2mm pop rivet specification:

• Rivet diameter (D): 3.2mm
• Body length (BL): 18mm
• Head type: Dome
• Body material: Aluminium
• Flange diameter (FD): 6.5mm
• Flange height (FH): 0.8mm
• Mandrel diameter (MD): 1.75mm
• Mandrel length (ML): 26mm
• Mandrel material: Steel
• Hole size: 3.3mm
• Grip range: 12.5mm - 14.5mm
• Sheer strength: 760
• Tensile strength: 980

Part of a growing range of pop rivets available at Fusion Fixings at competitive prices.
