2.4 x 8mm Dome Head Pop Rivet (Blind Rivet) Aluminium - Steel, Grip Range: 3.5 - 5.5mm

2.4mm pop rivet

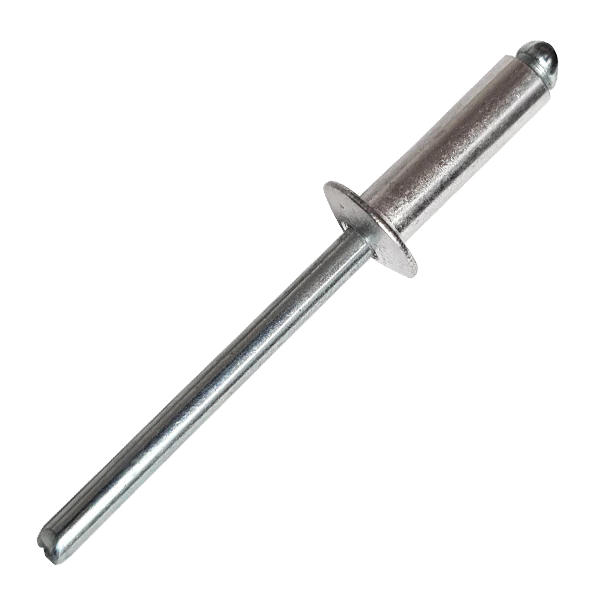

2.4 x 8mm dome pop rivet with a grip range of 3.5 - 5.5mm, designed to join material together where there is no access to the back of the material.

Known as blind rivets or dome head rivets and manufactured with a zinc plated steel mandrel and aluminium body.

Often used when maximum clamp-up and hole fill is required and manufactured with 2 core pieces, which include a rivet body and a mandrel.

The mandrel is pulled into the rivet gun which pulls the pop rivet body to compress it against the blind side of the material.

A simple, effective threadless fastener that ensures a secure hold and once done the mandrel then snaps off to leave a clean permanent finish.

Used across many industries by DIY enthusiasts and professionals alike this 2.4mm pop rivet is part of a growing range of blind rivets available at Fusion Fixings at competitive prices.

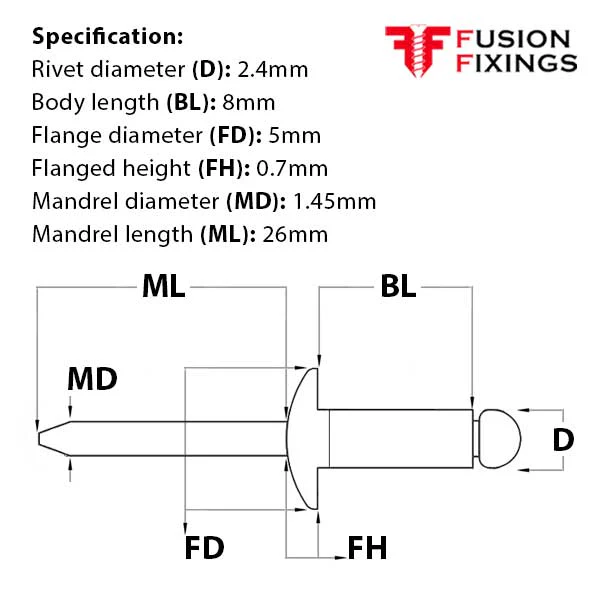

2.4mm pop rivet specification:

• Rivet diameter (D): 2.4mm
• Body length (BL): 8mm
• Head type: Dome
• Body material: Aluminium
• Flange diameter (FD): 5mm
• Flange height (FH): 0.7mm
• Mandrel diameter (MD): 1.45mm
• Mandrel length (ML): 26mm
• Mandrel material: Steel
• Hole size: 2.5mm
• Grip range: 3.5mm - 5.5mm
• Sheer strength: 315
• Tensile strength: 355


Part of a growing range of Aluminium pop rivets available at Fusion Fixings at competitive prices.
