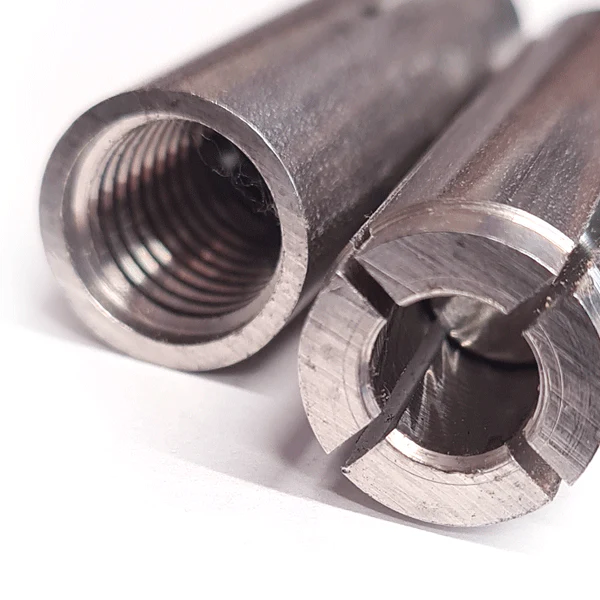

M10 (12mm) x 40mm JCP Drop-In Anchor, A4 Stainless Steel (DSSM10)

M10 Drop-in Anchor

M10 drop-in anchor designed to offer a permanent threaded socket within non-cracked concrete or other masonry surfaces.

A permanent socket which allows for the removal and replacement of the screw or bolt if needed.

Manufactured in A4 stainless steel for high resistance to corrosion making them ideal for both internal and external applications.

This secure hold is obtained by the expansion of the end of the drop-in anchor within the substrate. Once installed, the correctly sized screw or bolt can be screwed into the anchor effectively securing the material to the substrate.

Setting and expansion of the drop-in anchor can be guaranteed by using the M10 setting punch.

Simply drop the anchor into the correctly sized hole, place the setting punch against the anchor within the hole, and hit with a hammer to set the anchor.

This action against the internal plug causes the end of the anchor to expand against the walls of the substrate securing it in place.

Non-lipped drop-in anchors can be fitted flush or deeper into the substrate but once set they are set. Commonly used in construction and engineering projects where it's necessary to secure objects like structural beams, pipes, or equipment to a concrete surface.

M10 drop-in anchor specification

• Thread diameter (D): M10 - 10mm
• Length (L): 40mm
• Drill hole size: 12mm
• Internal threaded length: 15mm
• Material: A4 Stainless Steel (316)

Drop-in anchors offer a reliable internally threaded socket for use with corresponding screws to effective attach various materials to concrete or other masonry surfaces. This sees them used by DIY enthusiasts and professionals alike.
