10-32 UNF x 7/16 Inch Socket Cap Head Screw, A2 Stainless Steel (ASME B18.3)

10-32 UNF socket cap head screw

The 10-32 UNF x 7/16 inch socket cap head screw is a high-strength fastener made from corrosion-resistant A2 stainless steel, ideal for use in machinery, automotive, and construction industries.

Being manufactured in A2 stainless steel allows use for both internal and external applications. Its compact cylindrical head and internal hex socket allow secure, high-torque installations, even in restricted spaces.

Designed for maximum performance in demanding environments with a unified national fine thread (UNF) and installed with an Allen wrench or hex key (Allen key) which sees them widely used across many industries.

Versatile and corrosion resistance which sees these cap head screws used by DIY enthusiasts and professionals alike.

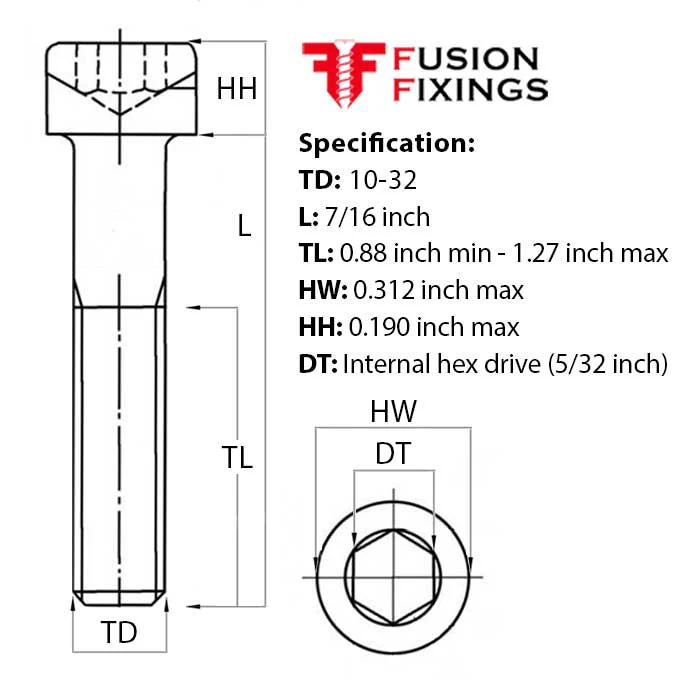

10-32 UNF socket cap head screw specification:

• Diameter (TD): 10-32

• Threads per inch (TPI): 32 (UNF)

• Length (L): 7/16 inch

• Thread length (TL): 0.88 inch min - 1.27 inch max

• Head width (HW): 0.312 inch max

• Head height (HH): 0.190 inch max

• Head type: Cap head

• Recess type (DT): Internal hex drive (5/32 inch)

• Conformality: ASME B18.3

10-32 UNF socket cap head screw key features:

• Manufactured from A2 stainless steel for great corrosion resistance, ideal for internal and external applications

• Compact cylindrical head design for tight space applications

• Deep internal hex socket allows easy application of high torque without damage

• UNF fine threads for secure fastening in demanding environments

• Fully compliant with ASME B18.3 standards

Part of a larger range of A2 stainless steel UNF cap head screws available from Fusion Fixings with bulk discounts.
