10-32 UNF x 3″ Hex Set Screw (Fully Threaded Bolt) A2 Stainless Steel

Product image 1
Product image 2

10-32 UNF x 3″ Hex Set Screw (Fully Threaded Bolt) A2 Stainless Steel

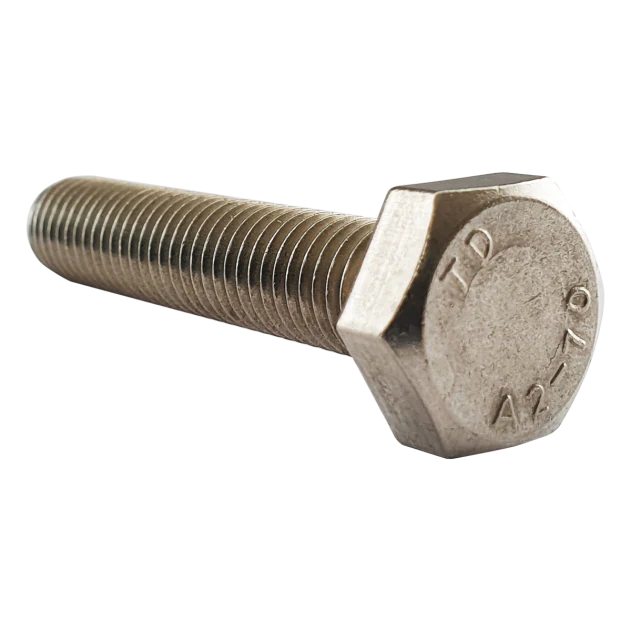

10-32 UNF hex set screw

UNF hex set screw, manufactured in A2 stainless steel offering high corrosion resistance. Unlike hexagon bolts, which are partially threaded, the hex head set screw has a fine thread extending up to the underside of the head. This ensures a secure and tight fixing every time without the worry of running out of thread.

Also known as a ‘fully threaded bolt’, the hex head also allows for higher torque to be applied with a range of conventional tools making them a versatile choice.

Versatile and when coupled with the 10-32 UNF nuts sees these hex head set screws widely used across many industries by DIY enthusiasts and professionals alike.

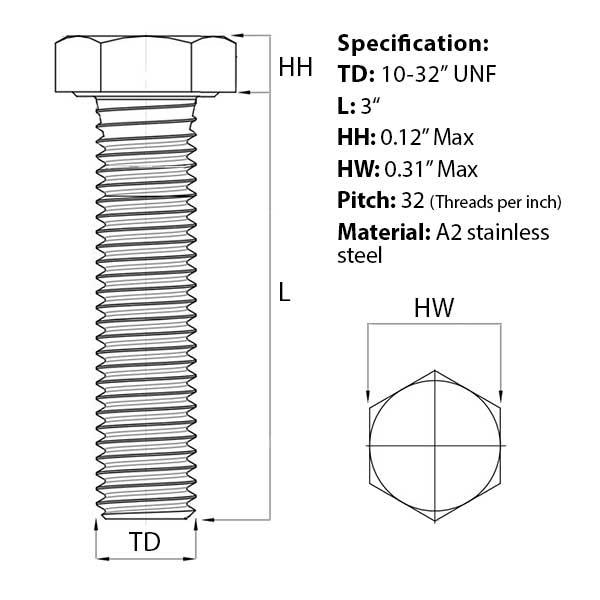

10-32 UNF set screw specification

  • Thread diameter (TD): 10-32 UNF
  • Length (L): 3″
  • Head height (HH): 0.12″ max
  • Head width (HW): 0.31″ max
  • Thread Pitch (TP): 32 (threads per inch)
  • Material: A2 stainless steel
  • Conformity: ASME B18.2.1

Part of a comprehensive range of A2 stainless steel UNF hex set screws available from Fusion Fixings. Quantities start for just one with bulk price discounts.

Select Quantity Break
From $0.27

Original: $0.91

-70%
10-32 UNF x 3″ Hex Set Screw (Fully Threaded Bolt) A2 Stainless Steel—

$0.91

$0.27

Product Information

Shipping & Returns

Description

10-32 UNF hex set screw

UNF hex set screw, manufactured in A2 stainless steel offering high corrosion resistance. Unlike hexagon bolts, which are partially threaded, the hex head set screw has a fine thread extending up to the underside of the head. This ensures a secure and tight fixing every time without the worry of running out of thread.

Also known as a ‘fully threaded bolt’, the hex head also allows for higher torque to be applied with a range of conventional tools making them a versatile choice.

Versatile and when coupled with the 10-32 UNF nuts sees these hex head set screws widely used across many industries by DIY enthusiasts and professionals alike.

10-32 UNF set screw specification

  • Thread diameter (TD): 10-32 UNF
  • Length (L): 3″
  • Head height (HH): 0.12″ max
  • Head width (HW): 0.31″ max
  • Thread Pitch (TP): 32 (threads per inch)
  • Material: A2 stainless steel
  • Conformity: ASME B18.2.1

Part of a comprehensive range of A2 stainless steel UNF hex set screws available from Fusion Fixings. Quantities start for just one with bulk price discounts.
