1/4” UNC (5/16”) x 2 1/2”, Socket Shoulder Screw, Self-Colour, Grade 12.9, ANSI B18.3

Product image 1
Product image 2

1/4” UNC (5/16”) x 2 1/2”, Socket Shoulder Screw, Self-Colour, Grade 12.9, ANSI B18.3

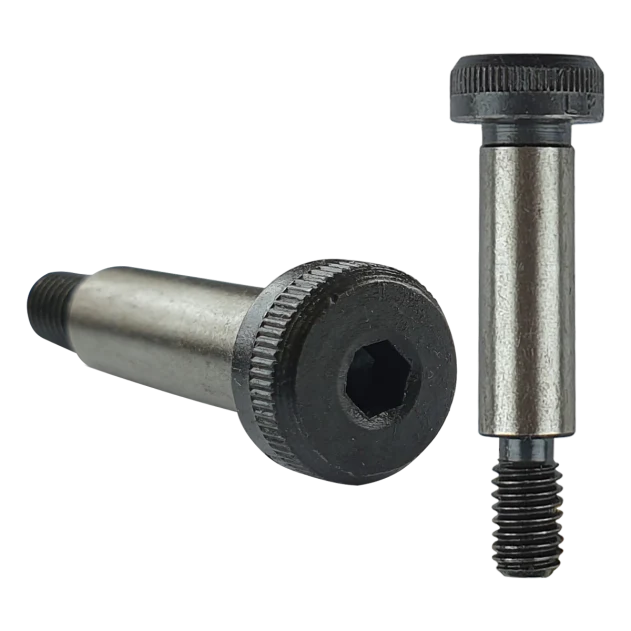

1/4” Socket Shoulder Screw

Self-colour, high-strength shoulder screw with a shouldered section that functions as a pivot or axle allowing movement around it.

Versatile engineering screw manufactured to ensure thread and shaft consistency. Ideal for heavy duty applications with a hex socket allowing fastening with an Allen key / hex drive which sees them widely used.

Conforming to ANSI B18.3 standards and manufactured from self-colour, grade 12.9 high tensile steel. Also known as a shoulder bolt and consisting of a socket cap head, an enlarged unthreaded ground shoulder section, and a threaded lower section.

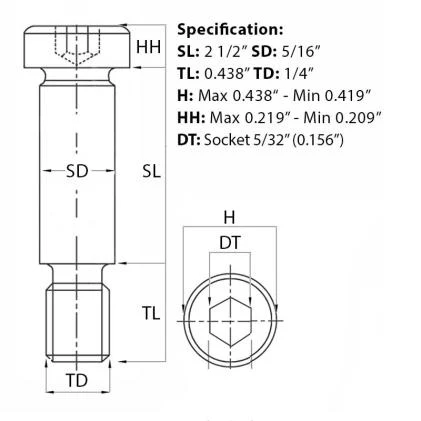

Shoulder Screw Specification:

  • Shoulder Length (SL): 2 1/2”
  • Shoulder Diameter (SD): 5/16”
  • Thread Length (TL): 0.438”
  • Thread Diameter (TD): 1/4”
  • Thread Pitch: 20
  • Head Width (H): Max 0.438” - Min 0.419”
  • Head Height (HH): Max 0.219” - Min 0.209”
  • Drive Type (DT): Socket 5/32” (0.156")
  • Material: Self-Colour, Grade 12.9 steel
  • Conformity: ANSI B18.3

These screws are used across many sectors and part of a growing range of versatile shoulder screws held in stock at Fusion Fixings, all with bulk purchase discounts.

Click here for the full range and to see the latest bulk discount offers.

Why choose Fusion Fixings?

With over 40 years of experience in the construction and fixings industry at Fusion Fixings, our aim is to bring you a range of quality, reliable fixings at great prices. With quantities starting from just one to as many as you like, with bulk price offers across a large number of our products.

    Select Quantity Break
    From $0.34

    Original: $1.15

    -70%
    1/4” UNC (5/16”) x 2 1/2”, Socket Shoulder Screw, Self-Colour, Grade 12.9, ANSI B18.3—

    $1.15

    $0.34
